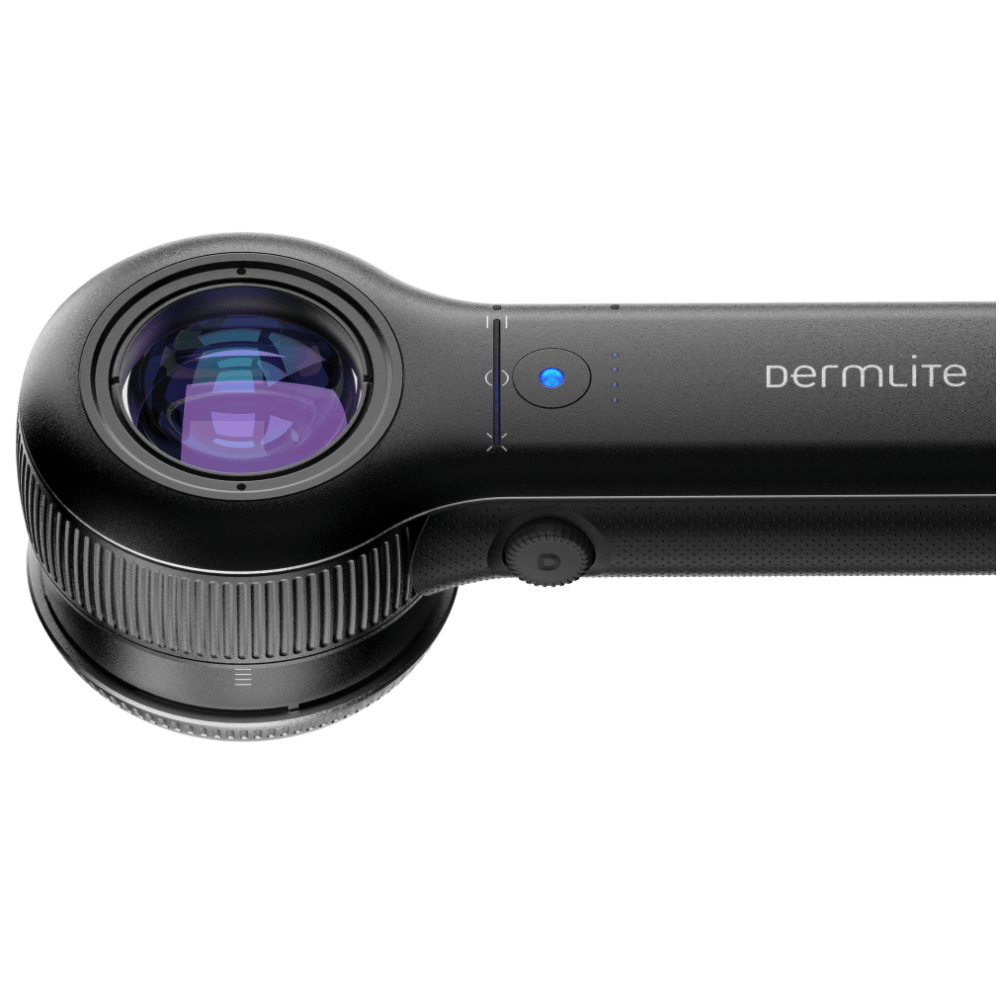

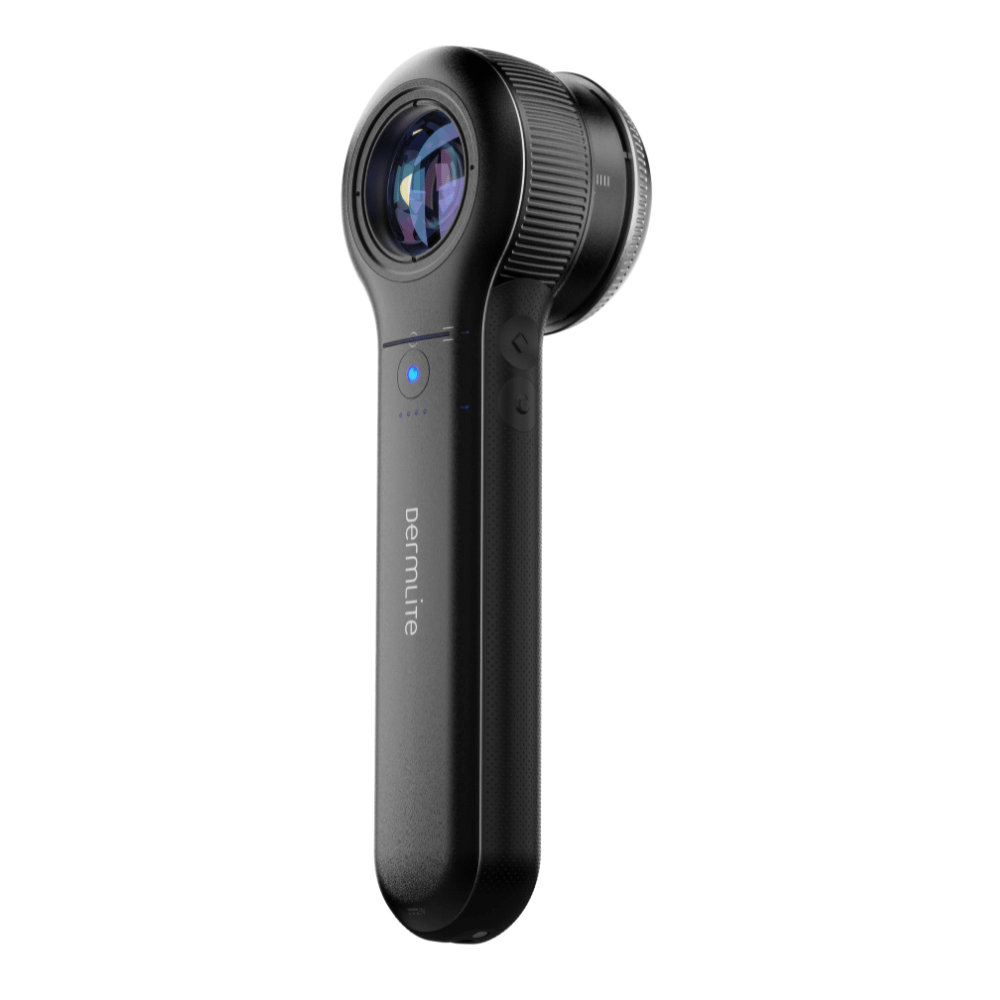

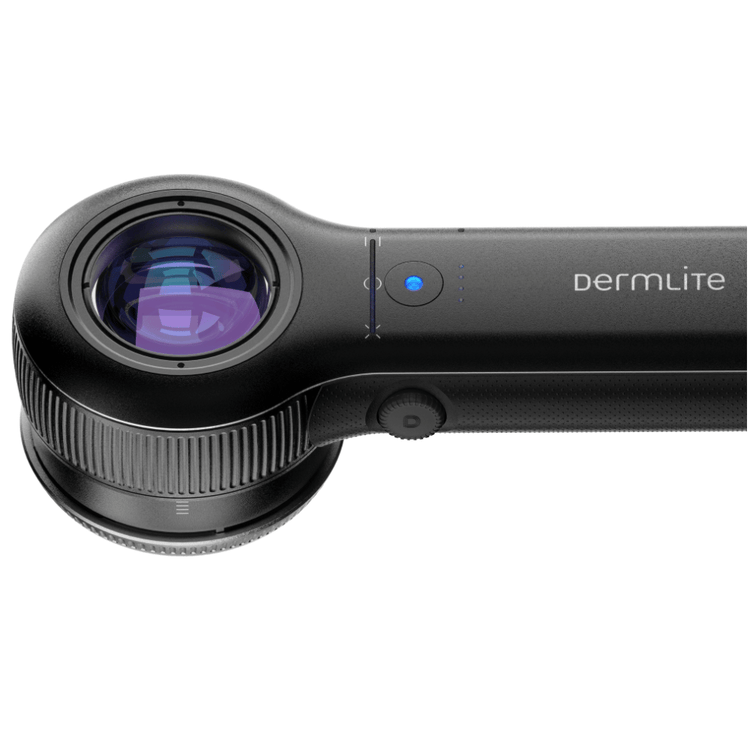

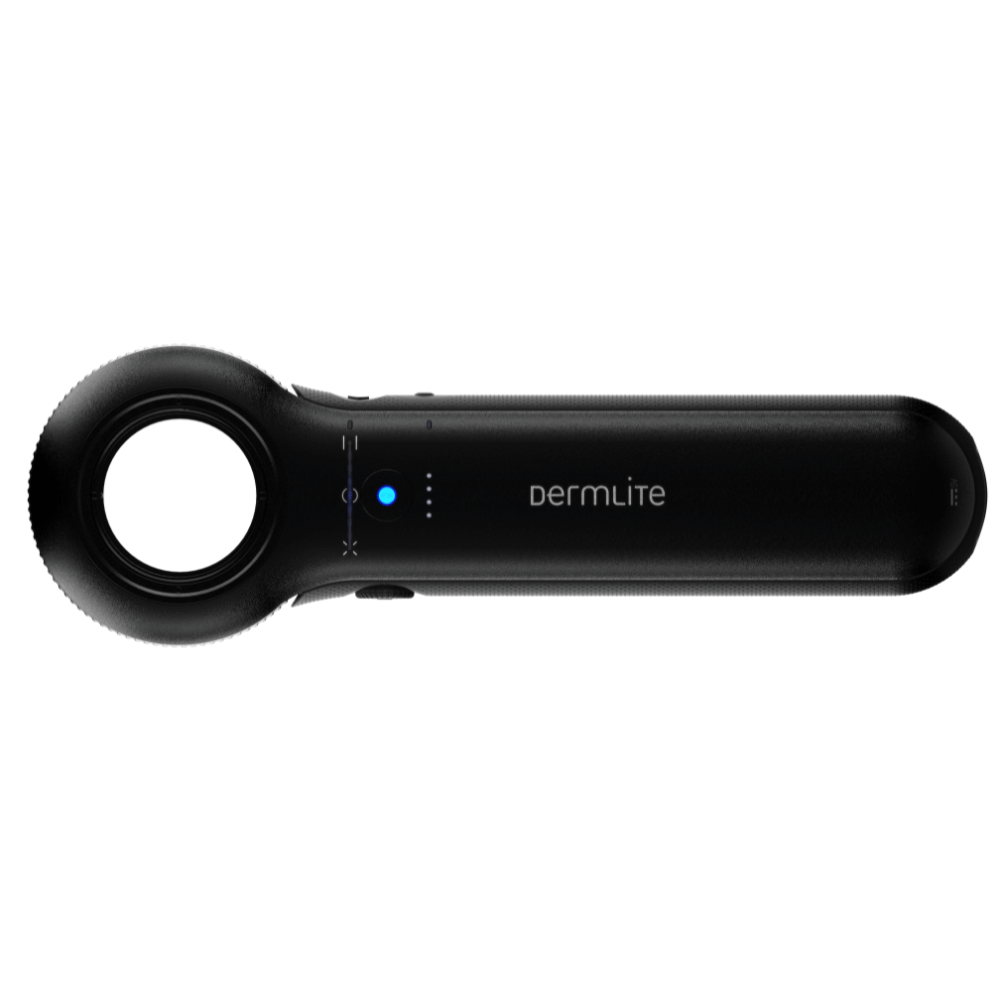

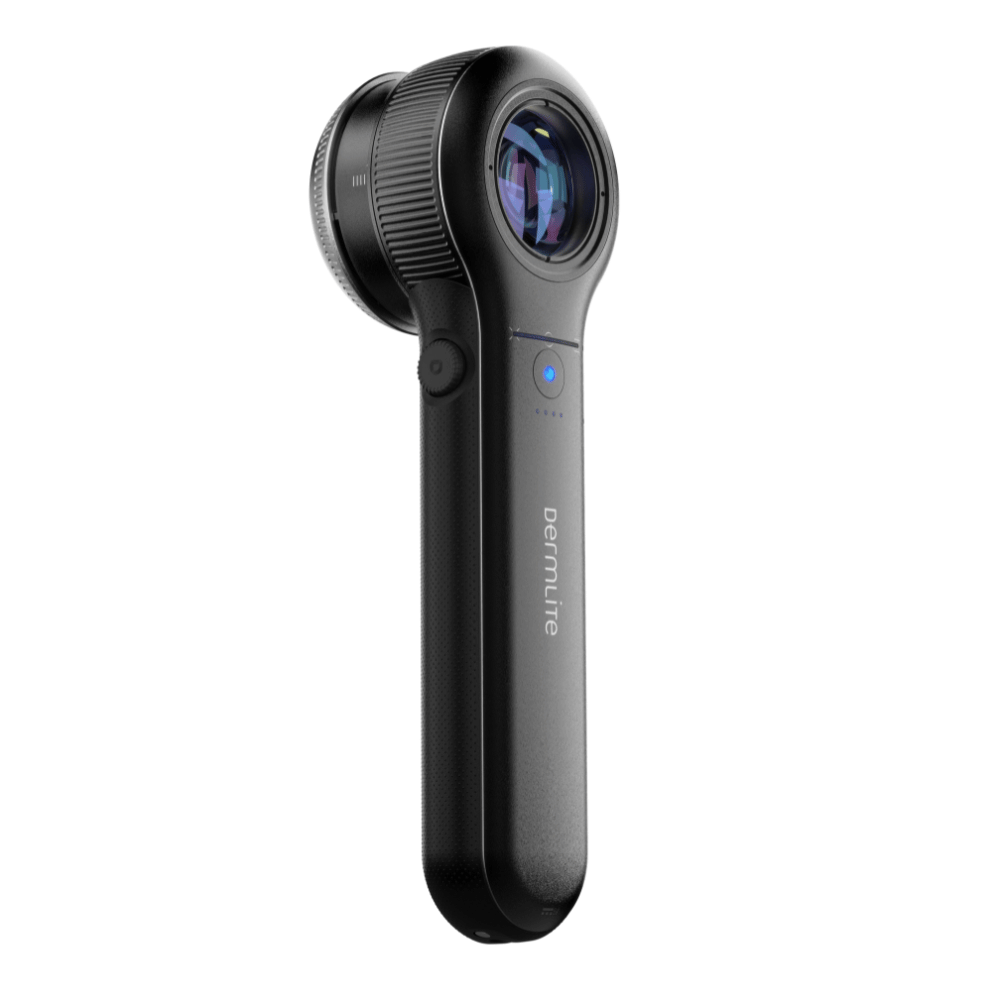

DermLite DL5 Plus

DL5 Plus delivers substantially increased illumination across all modes — and UV fluorescence that is now twice as bright as DL5.

By doubling down on UV and leveraging its ever-expanding clinical utility, DL5 Plus continues our drive to create tools that inspire curiosity and enable discovery.

With seamless wireless control through the first ever complete DermLite app, it turns your iPhone into a platform for a complete dermoscopy workflow — capture, AI-analyze, follow up, and organize with ease.

FEATURES & BENEFITS

• Enhanced illumination across all modes
• UV fluorescence twice as bright as DL5
• Integrated workflow via DermLite app

OPTICS

• ø32 mm premium lens system with exceptional clarity up-close and at distance
• True 10x magnification — resolves even finer structures
• Works with virtually any smartphone via included MCC adapter

POLARIZATION

• Toggle between DermLite-quality polarized and non-polarized illumination
• Continuous scroll from deep cross-polarization to superficial parallel polarization

ILLUMINATION

• Substantially brighter white LEDs with signature DermLite spectrum
• 365 nm UV mode — more than twice as bright as DL5
• PigmentBoost mode with 9 adjustable color temperature levels
• Torch mode: ultrabright LED for distant illumination

SMART CONNECTIVITY VIA THE DERMLITE APP

• Automated MultiShot (multiple lighting modes captured with a single tap)
• AI risk scoring (MDR-compliant where available)

INCLUDES

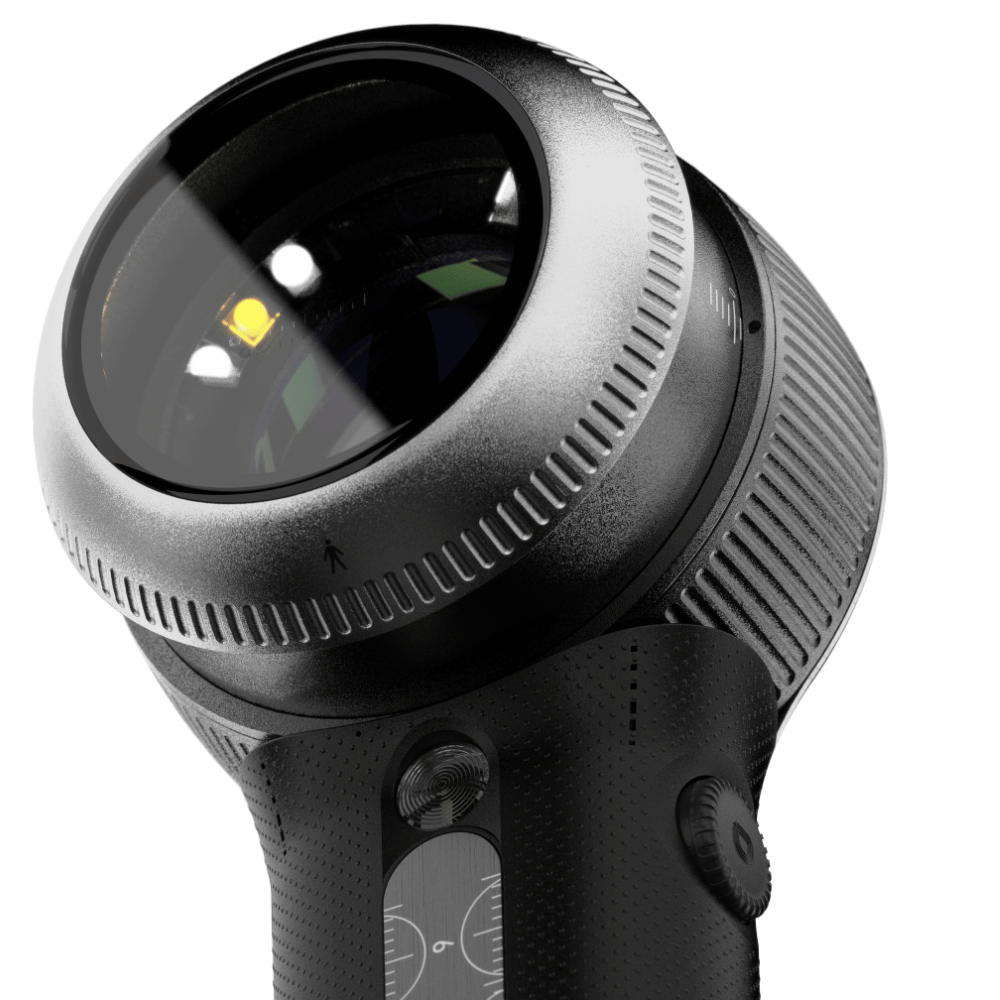

• Removable glass contact plate with 10 mm reticle (bayonet style)
• Includes IceCap disposable caps to help reduce cross-contamination
• Compatible with small-area contact plate (sold separately)

POWER

• 3000 mAh lithium-ion battery with USB-C charging
• Four-level charge indicator; device sleeps after 3 minutes of inactivity
• Vacation Mode reduces battery drain during extended downtime

DL5 PLUS INCLUDES

• Handheld dermatoscope with 10x magnification, variable polarization, white/PigmentBoost/UV LEDs for dermoscopy, torch LED
• 2 m USB-C to USB-C cable

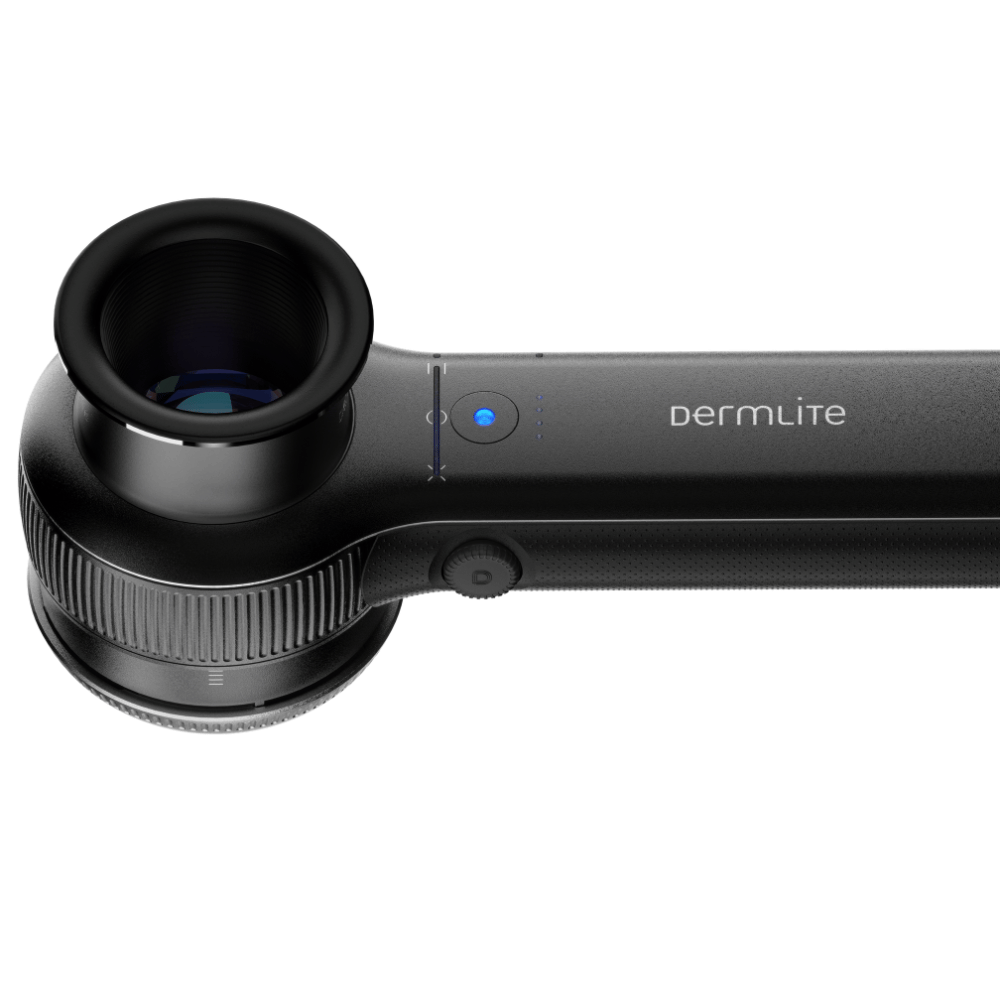

• Eyepiece
• Magnetically attached stainless steel ruler
• Leather belt pouch
• Plastic belt holster
• Universal smartphone connector MCC
• IceCap® 5-piece sample supply
• Microfiber cleaning cloth

SIZE & MASS

• 182 x 58 x 36 mm
• 285 g
