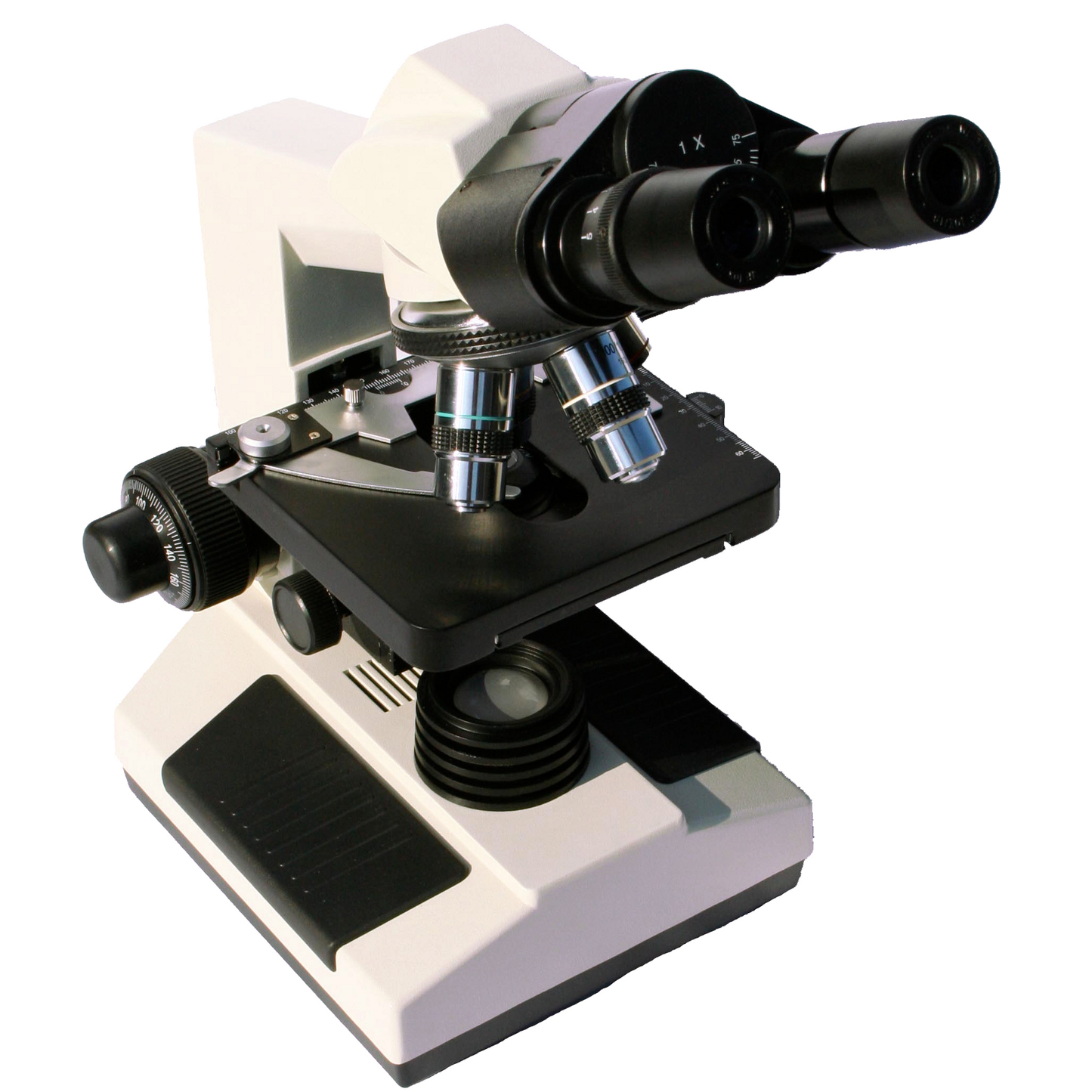

LW Scientific R3M-BN4A-DAL3 Revelation III Achromat Binocular Microscope, 100-240V
LW Scientific R3M-BN4A-DAL3 Revelation III Achromat Binocular Microscope, 100-240V
SKU : BN4A
Regular price
$1,054.87
Regular price
Special price
$1,054.87
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Revelation III professional-grade microscope features LED illumination for daylight color, low heat, low power consumption and super-long bulb life (30,000 hours). Equipped for performance, its features include titanium-finished DIN achromatic optics and a 3‑year anti-fungal coating. The Revelation III is the choice for superior performance at a great value!
- 4X, 10X, 40X, 100X (oil) objectives. Variable LED light source (3W bulb)
- CE approved
- 1-24 volt/5-6Hz auto-switching input
- Dimensions: 15"H x 9"L x 7"W
- Weight: 15 lbs
Head:
BinocularInclined 30°, rotates 360°
Diopter adjustment
10X/18 wide field eyepieces
Interpupillary distance range 55-75mm
Nosepiece:
Quadruple forward-facing nosepiece
Multiple ball bearing mounted
Objectives:
DIN Achromatic3 year anti-fungal coating
4X, 10X, 40X, 100X (oil)
Parfocal, parcentric, color-coded
Stage:
Mechanical stage (14mm x 14mm)Coaxial drive controls
Range of traverse is 73mm x 43mm
Stage locking lever
Slow-close hydraulic slide finger
Focus:
Coarse adjustment: range of 3mmFine adjustment: graduation of 2µm
Tension control knob
Illumination:
Movable Abbe condenser, NA 1.25, rack pinion
Iris diaphragm
Collapsible content
Specifications
- Country of Origin China
- Country Sales Restrictions Not Available to Ship to Canada
- Freezable Not Freezable
- Hazardous Shipping Restrictions Not Hazardous
- Heat Sensitive No
- Manufacturer Item Number R3M-BN4A-DAL3
- Perishable No
- Refrigeration Required No
- UOM EACH
